The software industry is rapidly moving beyond AI-assisted coding toward AI-Augmented software delivery.
Modern coding agents can already write code, execute tests, create pull requests, investigate incidents, review architectures, and collaborate with developers. However, as organizations attempt to operationalize these capabilities, a critical realization emerges: The effectiveness of an agent is determined less by the model it uses and more by the architecture in which it operates.
Just as distributed systems rely on patterns such as Event-Driven Architecture, CQRS, and Microservices, agentic systems require proven patterns for reasoning, collaboration, validation, and execution. The following ten patterns are emerging as the foundational building blocks of modern AgentOps platforms and AI-Augmented Software Development Lifecycles (AI-DLC).

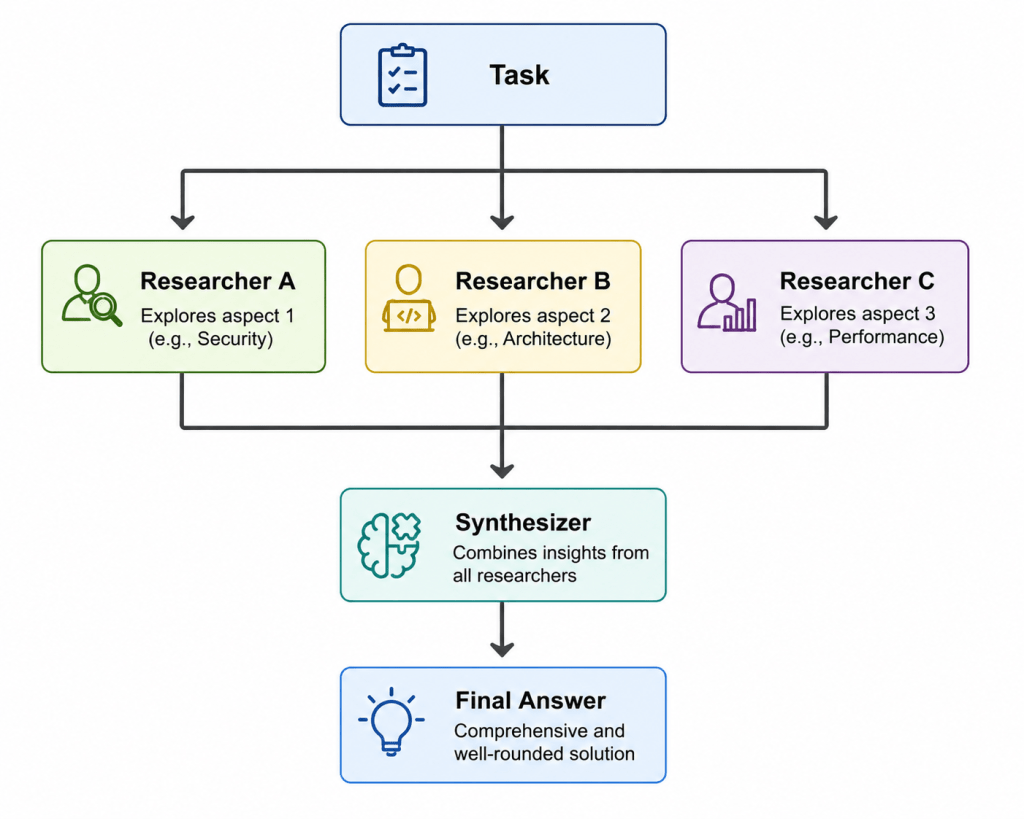

Pattern 1: Fan-Out / Fan-In: Parallel Exploration, Unified Insight
One of the most powerful ways to improve agent performance is to avoid relying on a single perspective. In the Fan-Out / Fan-In pattern, a task is distributed to multiple specialist agents operating in parallel. Each agent investigates a different dimension of the problem before a synthesizer combines their findings into a unified recommendation.
Consider a scenario where an engineering team wants to introduce a new authentication framework. Rather than asking one agent to design the solution, separate agents can independently analyze security best practices, repository conventions, performance implications, and industry reference architectures. The synthesizer agent then consolidates these perspectives into a comprehensive implementation plan.
This pattern is particularly effective for architecture reviews, requirements elaboration, root cause investigations, and technology evaluations. By introducing diversity of thought, organizations can significantly reduce blind spots and improve decision quality.
The Problem
Single agents often suffer from narrow reasoning paths and incomplete analysis. Complex engineering problems require multiple perspectives.
How It Works
A coordinator distributes a problem to multiple specialized agents.
Each agent explores a different dimension of the problem.
A synthesizer combines findings into a coherent recommendation.
When to Use
✅ Architecture design
✅ Technical due diligence
✅ Incident investigations
✅ Requirements analysis
✅ Research-heavy tasks
When Not to Use
❌ Simple coding tasks
❌ Small bug fixes
❌ Time-sensitive execution
Advantages
- Higher quality recommendations
- Reduced blind spots
- Better coverage

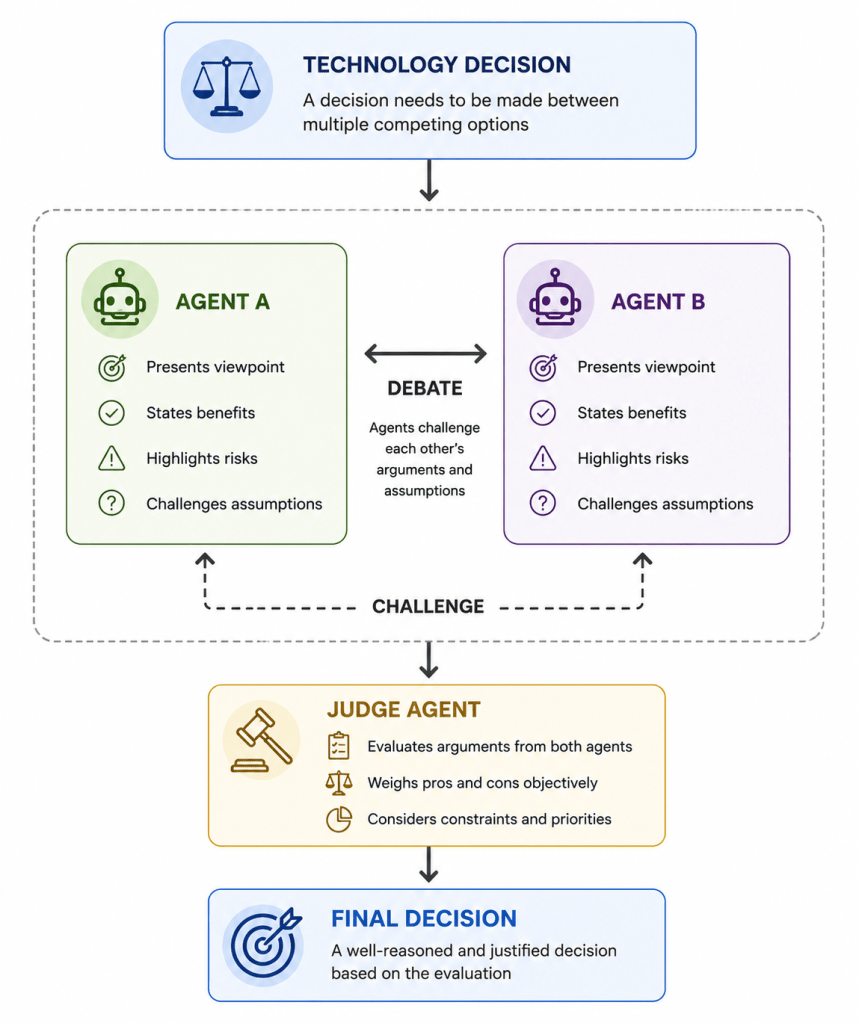

Pattern 2: Debate: Structured Adversarial Reasoning
Many engineering decisions involve tradeoffs rather than objectively correct answers. The Debate pattern addresses this challenge by assigning competing viewpoints to different agents. These agents argue for alternative solutions, challenge assumptions, and expose weaknesses in each other’s reasoning before a judge agent evaluates the outcome.
For example, an organization deciding between Kafka and EventBridge may assign one agent to advocate for each platform. The resulting debate surfaces operational complexity, scalability concerns, team expertise requirements, and long-term maintenance considerations. Rather than generating a recommendation immediately, the system produces a transparent decision-making process.
Debate patterns are especially valuable for architecture decisions, vendor selection, technology adoption strategies, and build-versus-buy evaluations.
The Problem
Many engineering decisions involve competing tradeoffs rather than objectively correct answers.
How It Works
Multiple agents defend competing viewpoints.
A judge agent evaluates arguments and selects the best outcome.
When to Use
✅ Architecture decisions
✅ Vendor selection
✅ Cloud service evaluation
✅ Technology adoption
When Not to Use
❌ Deterministic implementation tasks
❌ Coding activities
Advantages
- Explicit tradeoff analysis
- Better strategic decisions

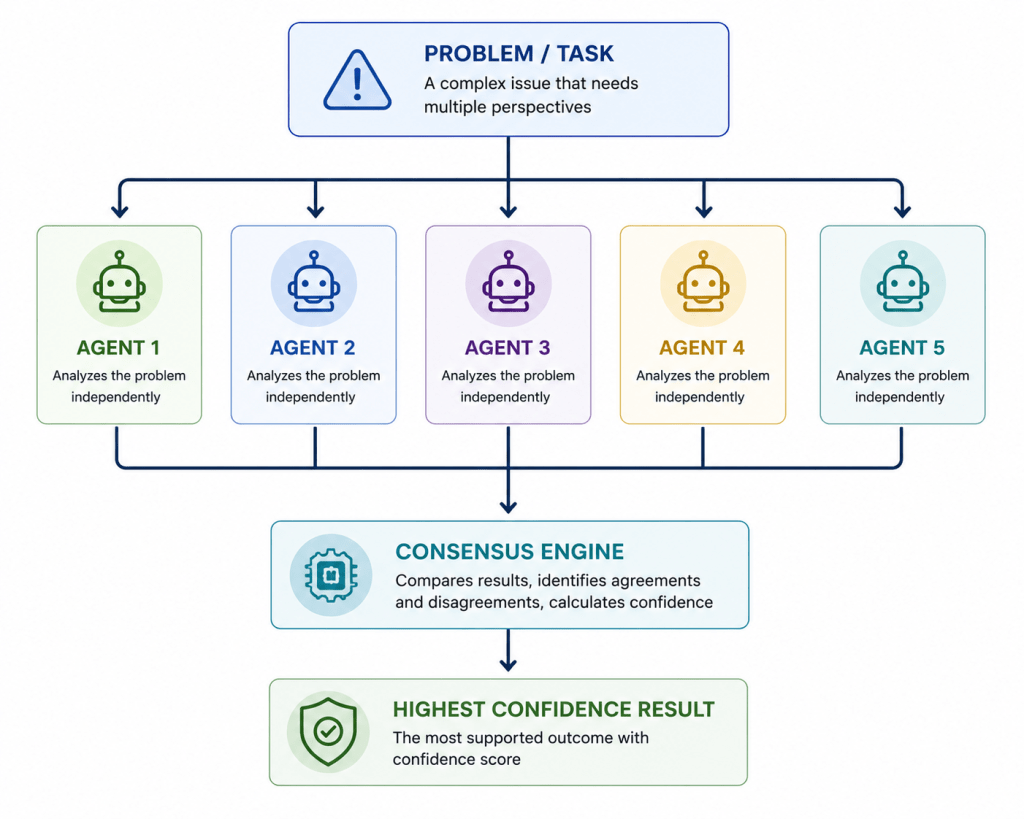

Pattern 3: Stochastic Consensus: Reliability Through Independent Reasoning
One of the most effective ways to reduce hallucinations is to introduce redundancy. In a Stochastic Consensus architecture, multiple agents independently solve the same problem. Their outputs are then compared to identify areas of agreement and disagreement.
Imagine investigating a production outage. Five independent agents analyze logs, metrics, and recent deployments. If four agents conclude that a database connection leak is responsible while one identifies memory pressure, the system can assign a higher confidence level to the majority conclusion.
This pattern is particularly valuable in environments where correctness matters more than speed, including incident response, compliance validation, security investigations, and high-risk operational decisions.
The principle is simple: confidence increases when multiple independent reasoning paths converge on the same conclusion.
The Problem
LLMs can produce different answers to the same question.
How do we know which answer is correct?
How It Works
Independent agents solve the same problem.
Results are compared.
Consensus determines confidence.
When to Use
✅ Incident response
✅ Security investigations
✅ Compliance validation
✅ High-risk decisions
When Not To Use
❌ Simple factual queries
❌ Deterministic repository lookups
❌ Real-time workflows requiring low latency
❌ High-volume repetitive tasks
Advantages
- Reduced hallucinations
- Improved reliability
Limitation
Higher computational cost.

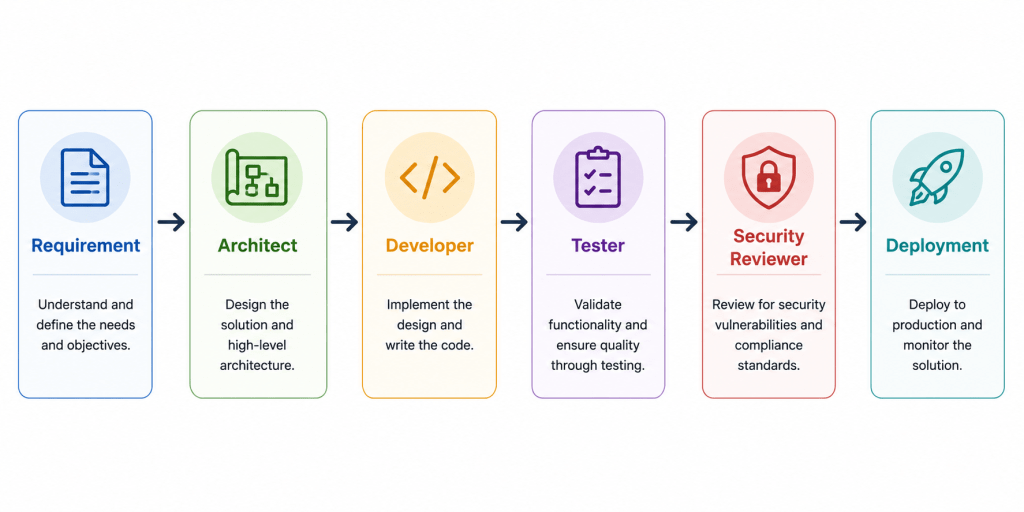

Pattern 4: Pipeline: Specialized Agents Working in Sequence
Most software organizations already operate through specialized roles. Requirements move from product managers to architects, developers, testers, security teams, and release managers. The Pipeline pattern mirrors this process in an agentic environment.
Each agent performs a specific function before handing work to the next stage in the workflow. An architect agent produces a design, a development agent implements it, a testing agent generates validation suites, and a security agent evaluates risks before deployment approval.
This approach aligns naturally with existing governance models and organizational structures. It is particularly effective in large enterprises and regulated industries where traceability and accountability are essential. While pipeline architectures may sacrifice some execution speed, they provide exceptional clarity and control.
The Problem
Organizations need governance, traceability, and structured workflows.
How It Works
Work progresses through specialist agents sequentially.
Each stage enriches or validates the output.
When to Use
✅ Enterprise SDLC
✅ Regulated environments
✅ Production releases
When Not To Use
❌ Exploratory research
❌ Rapid prototyping
❌ Small bug fixes
❌ Highly iterative tasks
Limitation
Errors propagate downstream.

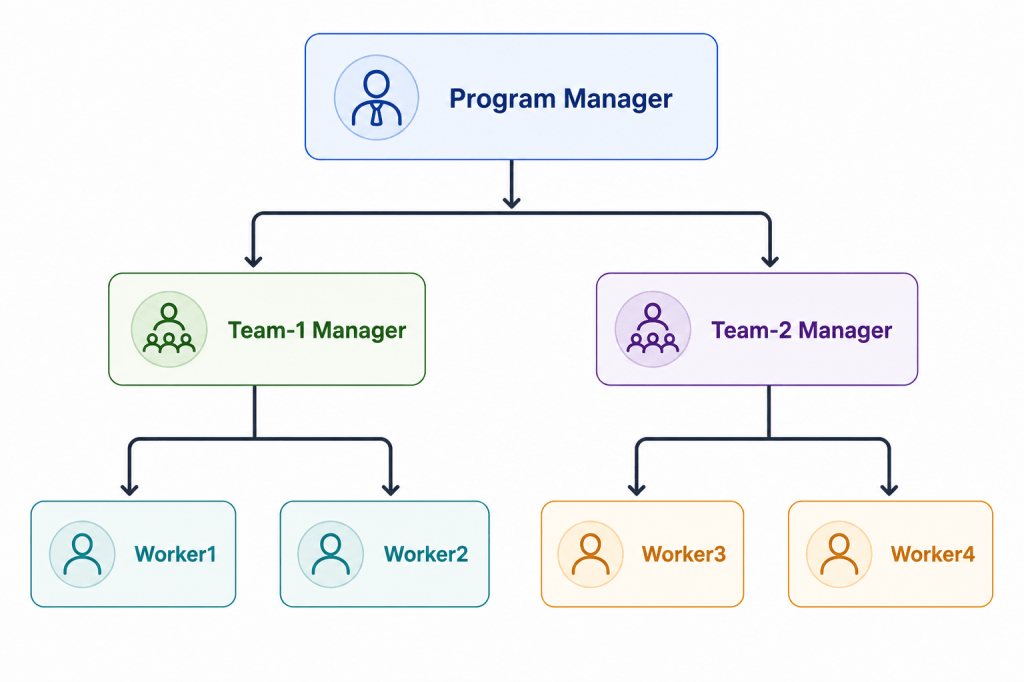

Pattern 5: Hierarchical Manager: Scaling Agent Organizations
As projects grow in complexity, flat agent structures become difficult to manage. The Hierarchical Manager pattern introduces layers of coordination similar to how large engineering organizations operate. A top-level manager oversees multiple domain-specific managers, each responsible for coordinating a group of worker agents.
Consider a cloud modernization initiative involving application code, infrastructure, data platforms, and security controls. A program manager agent coordinates the overall effort, while domain managers oversee their respective areas. This pattern enables large-scale parallel execution while maintaining strategic alignment and visibility.
It is particularly useful for enterprise transformations, platform engineering initiatives, and large repository modernization programs.
The Problem
Large projects exceed the coordination capacity of a single agent.
When to Use
✅ Enterprise transformations
✅ Multi-team projects
✅ Large repositories
When Not To Use
❌ Small repositories
❌ Single developer workflows
❌ Short-duration tasks
❌ Teams with unclear domain boundaries

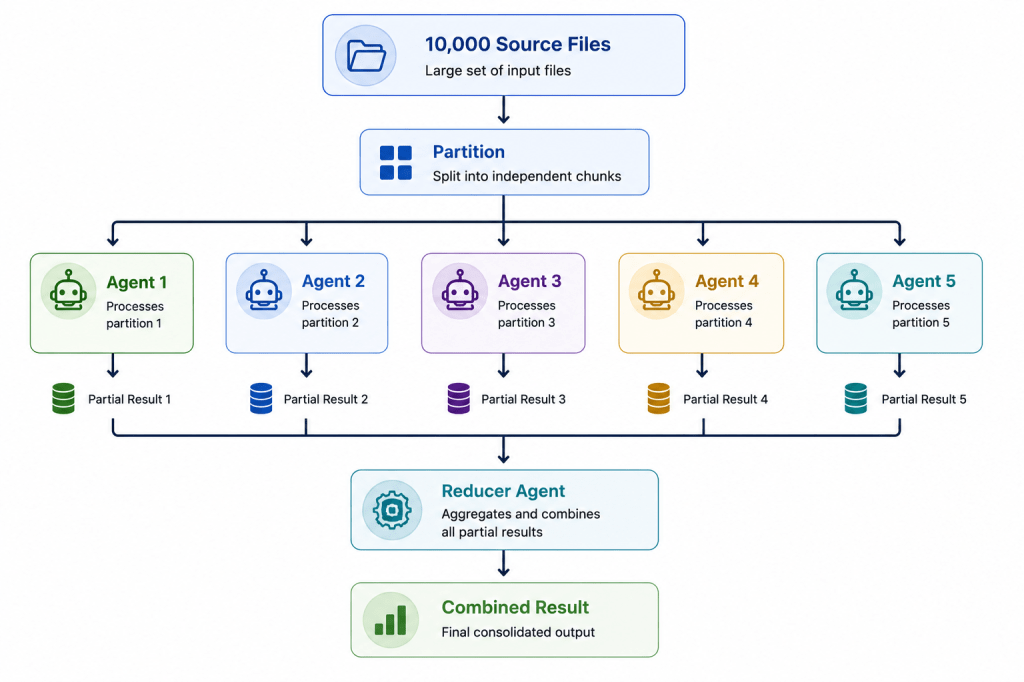

Pattern 6: Map-Reduce: Scaling Through Parallel Execution
Some software engineering tasks are naturally divisible. Generating tests across thousands of source files, documenting a large codebase, or performing repository-wide refactoring can be decomposed into independent units of work.
The Map-Reduce pattern distributes these tasks across multiple agents operating simultaneously. Once execution is complete, a reducer agent consolidates outputs into a coherent result.
Organizations modernizing legacy applications or conducting large-scale migrations often benefit significantly from this pattern. By leveraging parallel execution, tasks that would traditionally require weeks can often be completed in hours.
Map-Reduce remains one of the most efficient patterns for maximizing throughput.
The Problem
Some tasks are embarrassingly parallel.
When to Use
✅ Large-scale code migrations
✅ Massive test generation
✅ Repository-wide documentation generation
✅ Static code analysis at scale
✅ Bulk refactoring
✅ Monorepo operations
When Not To Use
❌ Tasks with strong interdependencies
❌ Architectural design
❌ Root cause analysis
❌ Small workloads

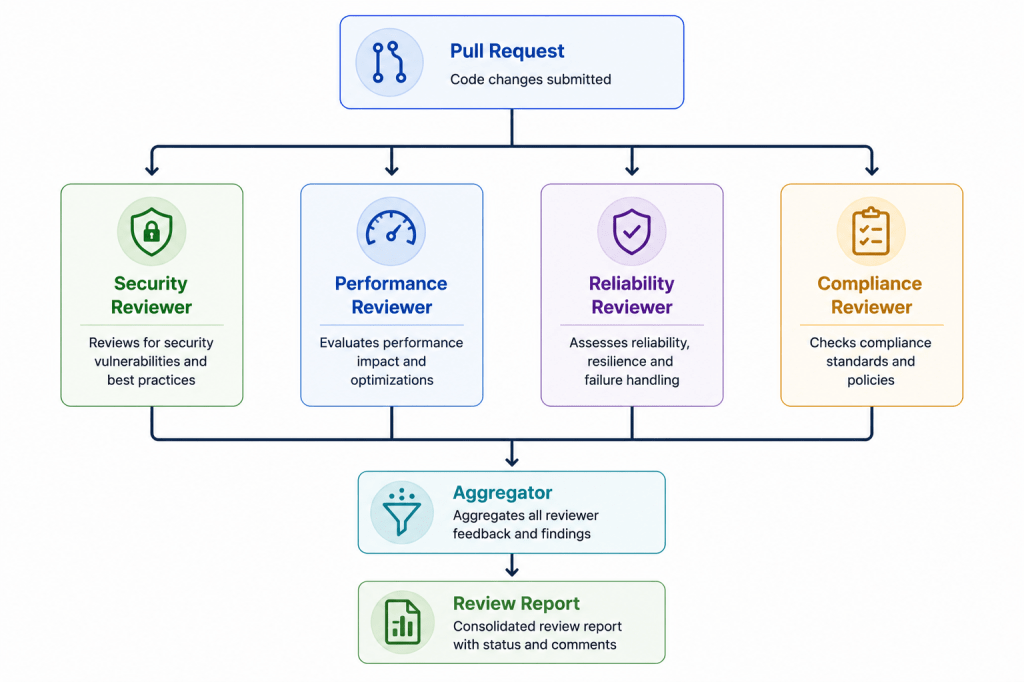

Pattern 7: Reviewer Swarm: Multi-Dimensional Quality Assurance
Traditional code reviews often depend on a single reviewer identifying issues across multiple domains. The Reviewer Swarm pattern takes a different approach. Instead of assigning one reviewer, multiple specialized agents independently evaluate the same artifact. One focuses on security vulnerabilities, another on performance optimization, another on reliability concerns, and another on compliance requirements. Their findings are aggregated into a unified review report.
This pattern dramatically improves defect detection rates and reduces the likelihood of critical issues reaching production. It also mirrors how mature engineering organizations distribute expertise across specialized review functions.
For organizations implementing AgentOps, Reviewer Swarms often become a cornerstone of governance and quality assurance.
The Problem
Single reviewers miss defects.
When to Use
✅ Production deployments
✅ Critical applications
✅ Enterprise governance
When Not To Use
❌ Early development stages
❌ Prototype code
❌ Low-risk changes
❌ Resource-constrained environments

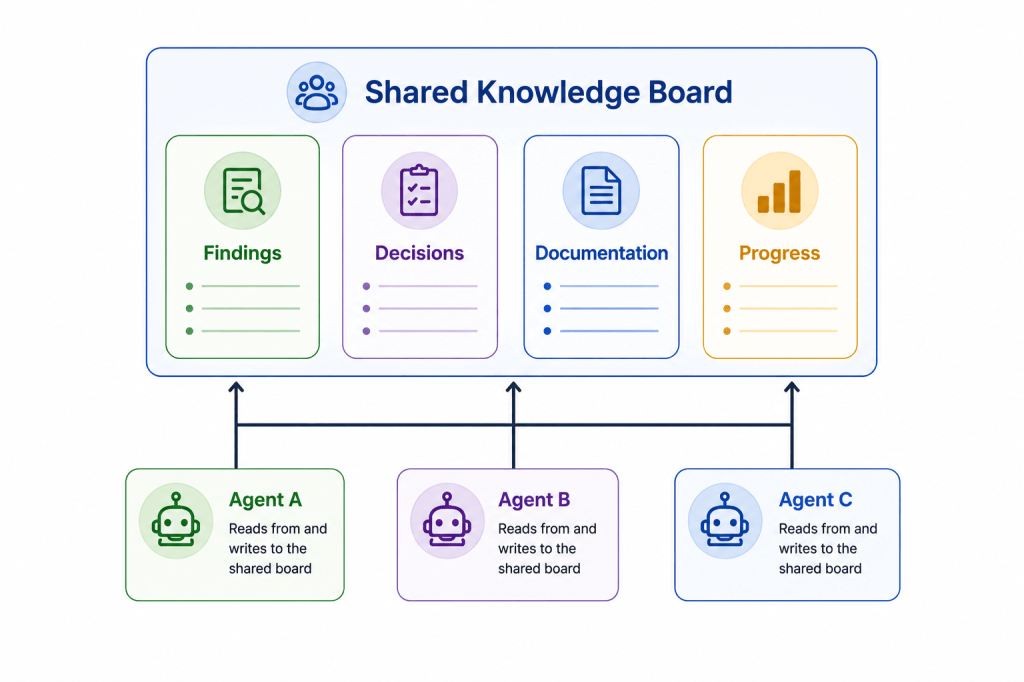

Pattern 8: Blackboard: Shared Intelligence Across Agents
As workflows become more complex, agents need a mechanism to share context and build upon each other’s work. The Blackboard pattern introduces a shared workspace where agents contribute findings, hypotheses, decisions, and artifacts. Rather than communicating directly, agents collaborate through this common memory structure.’
For example, during a multi-week modernization project, architecture agents may document decisions, implementation agents may record progress, and verification agents may add validation results. All participants operate against a continuously evolving knowledge base.
This approach enables long-running workflows, persistent context, and collaborative problem-solving across large teams of agents. The Blackboard pattern is increasingly becoming the foundation for enterprise-scale agent memory systems.
The Problem
Agents lose context across long-running workflows.
How It Works
Agents interact through shared memory rather than direct communication.
When to Use
✅ Long-running projects
✅ Complex multi-agent collaboration
✅ Large repositories
✅ Continuous software delivery
✅ Enterprise knowledge systems
✅ Cross-functional workflows
When Not To Use
❌ Short-lived workflows
❌ Small teams of agents
❌ Highly sensitive environments
❌ Workflows requiring strict isolation
Advantages
- Persistent memory
- Better collaboration
- Reduced duplication

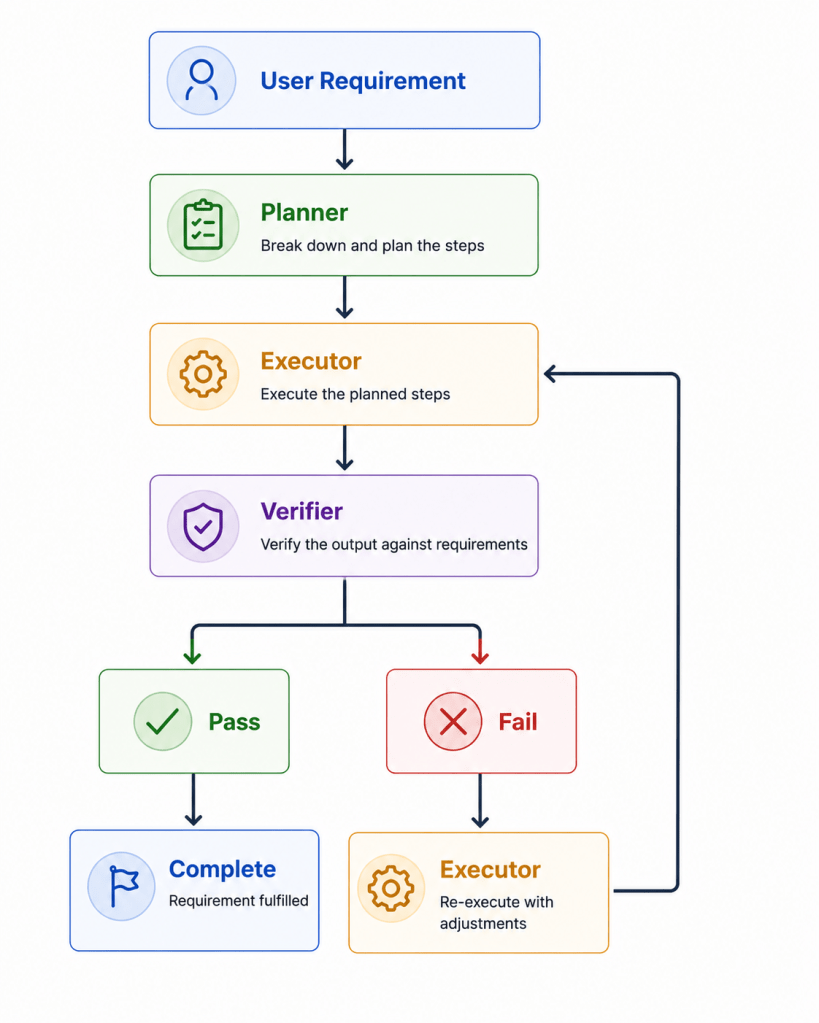

Pattern 9: Planner → Executor → Verifier: The Backbone of Modern Coding Agents
Among all emerging patterns, Planner → Executor → Verifier has arguably become the most important. The workflow is straightforward. A planning agent decomposes a task into executable steps. An execution agent implements those steps. A verification agent validates the results through tests, linting, security scans, and build processes.
If verification fails, feedback is routed back to the executor for correction. This creates a closed-loop system focused on measurable outcomes rather than generated code alone.
Many of today’s most capable coding agents rely heavily on this architecture because it combines autonomy with accountability.
Organizations seeking to deploy coding agents in production should consider this pattern a foundational building block rather than an optional enhancement.
The Problem
Generating code is not enough.
Code must be validated.
Why It Matters
This is the foundational architecture behind many successful coding agents because it introduces accountability and measurable correctness.
When to Use
✅ Feature implementation
✅ Complex bug fixing
✅ Automated pull request generation
✅ Refactoring initiatives
✅ CI/CD automation
✅ Agentic Software Delivery
When Not To Use
❌ Pure research tasks
❌ Brainstorming
❌ Open-ended discovery
❌ Very small tasks

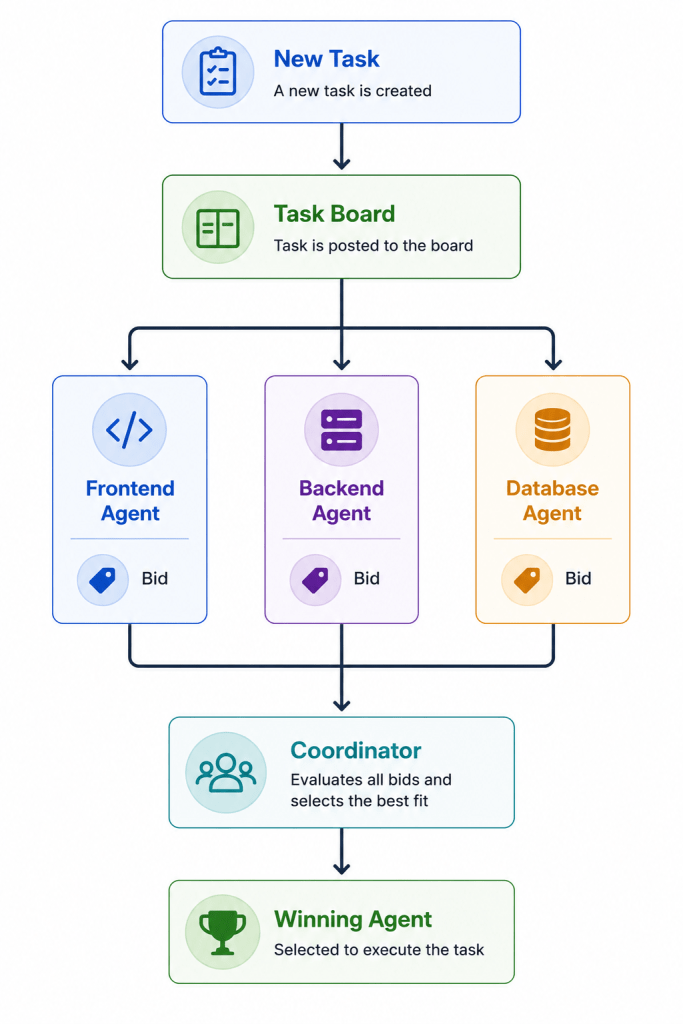

Pattern 10: Market-Based Allocation: Dynamic Agent Collaboration
As agent ecosystems mature, static task assignment becomes increasingly inefficient.
The Market pattern allows agents to compete for work based on expertise, confidence, availability, or estimated execution cost.
When a task arrives, eligible agents submit bids describing why they are the best candidate. A coordinator selects the most appropriate participant.
This creates a self-optimizing system where specialized agents naturally gravitate toward work that matches their strengths.
Although still an emerging approach, market-based coordination is showing promise in large agent swarms and dynamic software delivery environments where workloads continuously evolve.
The Problem
Not all agents are equally qualified for every task.
When to Use
✅ Agent swarms
✅ Dynamic environments
✅ Self-organizing systems
When Not To Use
❌ Small agent ecosystems
❌ Stable workflows
❌ Latency-sensitive systems
❌ Highly regulated environments
Limitation
Still emerging and less common in enterprise deployments.
Composing Patterns into an AgentOps Platform
The most effective systems do not choose a single pattern.
They combine them.

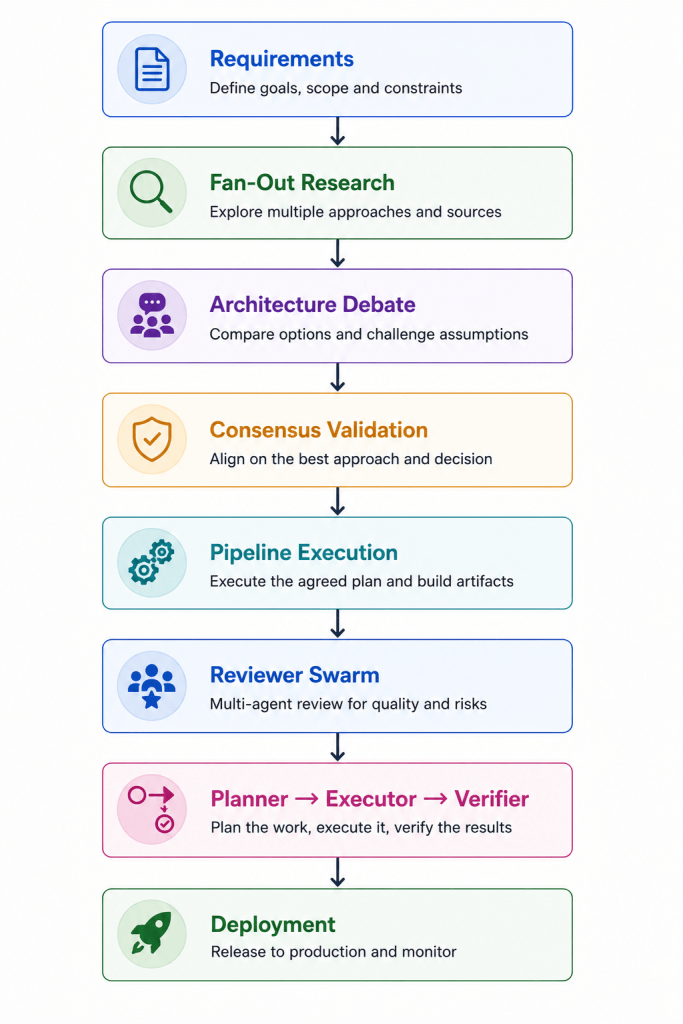

A modern AI-driven SDLC platform might follow this workflow:
This mirrors how elite engineering organizations operate today:
- Parallel discovery
- Structured decision-making
- Specialized execution
- Independent verification
- Continuous governance
The future of software engineering will not be built around a single super-agent. It will be built around well-orchestrated systems of specialized agents working together across the entire software delivery lifecycle.
Organizations that master these patterns today will be the ones that successfully transition from AI-assisted development to AI-driven software delivery.
