Migrating data from different sources to DocumentDB

The DocumentDB Data Migration Tool is an open source tool for importing data to DocumentDB from a variety of sources such as JSON files, CSV files, MongoDB,  SQL Server, Azure Table storage, Amazon DynamoDB, HBase etc

The import tool can be used both via its GUI (dtui.exe) or through its command line interface (dt.exe).  Moreover, there is an option to output the associated command after setting up an import through the UI.  Tabular data (e.g. SQL Server, CSV files etc) can also be transformed into hierarchical structure (subdocuments) during import.

How to Install

The migration tool source code is available on GitHub in the repository and a compiled version can also be downloaded from Microsoft Download Center. Following are the exe’s to be run:

·         Dtui.exe: Graphical interface version of the tool

·         Dt.exe: Command-line version of the tool

Data Sources

JSON File(s)

The JSON file source importer option allows you to import one or more single document JSON files or JSON files that each contain an array of JSON documents. Also, there is an option of recursively searching for files in subfolders, while adding folders that contain JSON files to be imported

1

Decompress data option allows you to decompress the data from GZip stream while performing an import. This will be applied to all selected files. Equivalent command line option is /s.Decompress.

Here are some command line samples for JSON file import:

Import a single JSON file

dt.exe /s:JsonFile /s.Files:.\Sessions.json /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:Sessions

Import a directory of JSON files

dt.exe /s:JsonFile /s.Files:C:\TESessions\*.json /t:DocumentDBBulk /t.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:Sessions

Import a directory (including sub-directories) of JSON files

dt.exe /s:JsonFile /s.Files:C:\LastFMMusic\**\*.json /t:DocumentDBBulk /t.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:Music

Import a directory (single), directory (recursive), and individual JSON files

dt.exe /s:JsonFile /s.Files:C:\Tweets\*.*;C:\LargeDocs\**\*.*;C:\TESessions\Session48172.json;C:\TESessions\Session48173.json;C:\TESessions\Session48174.json;C:\TESessions\Session48175.json;C:\TESessions\Session48177.json /t:DocumentDBBulk /t.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:subs

Import a single JSON file and partition the data across 4 collections

dt.exe /s:JsonFile /s.Files:D:\\CompanyData\\Companies.json /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:comp[1-4] /t.PartitionKey:name /t.CollectionThroughput:2000

Import a single compressed JSON file

dt.exe /s:JsonFile /s.Files:.\Sessions.json /s.Decompress /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:Sessions

MongoDB

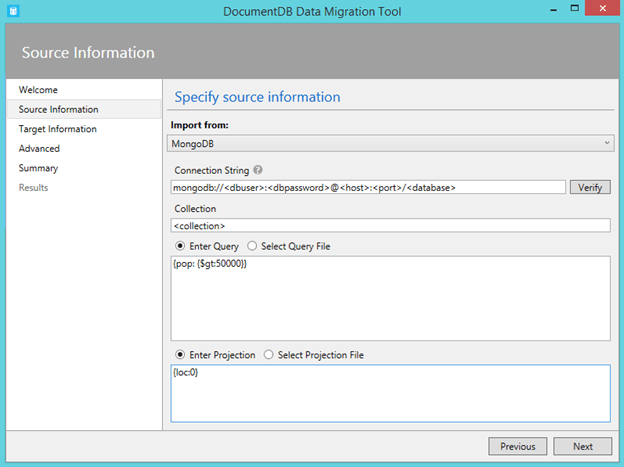

The MongoDB source importer option allows you to import from an individual MongoDB collection and optionally filter documents using a query and/or modify the document structure by using a projection.

2

The connection string is in the standard MongoDB format:

mongodb://<dbuser>:<dbpassword>@<host>:<port>/<database>

Here are some command line samples to import from MongoDB:

Import all documents from a MongoDB collection

dt.exe /s:MongoDB /s.ConnectionString:mongodb://<dbuser>:<dbpassword>@<host>:<port>/<database> /s.Collection:zips /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:BulkZips /t.IdField:_id Import documents from a MongoDB collection which match the query and exclude the loc fielddt.exe /s:MongoDB /s.ConnectionString:mongodb://<dbuser>:<dbpassword>@<host>:<port>/<database> /s.Collection:zips /s.Query:{pop:{$gt:50000}} /s.Projection:{loc:0} /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:BulkZipsTransform /t.IdField:_id

MongoDB export files

The MongoDB export JSON file source importer option allows you to import one or more JSON files produced from the mongoexport utility.


When adding folders that contain MongoDB export JSON files for import, you have the option of recursively searching for files in subfolders.

Decompress data option allows you to decompress the data from GZip stream while performing an import. This will be applied to all selected files. Equivalent command line option is /s.Decompress.

Here is a command line sample to import from MongoDB export JSON files:

dt.exe /s:MongoDBExport /s.Files:D:\mongoemployees.json /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:employees /t.IdField:_id /t.Dates:Epoch



SQL Server

The SQL source importer option allows you to import from an individual SQL Server database and optionally filter the records to be imported using a query. In addition, you can modify the document structure by specifying a nesting separator (more on that in a moment).

4

The format of the connection string is the standard SQL connection string format.

Tip: Use the Verify command to ensure that the SQL Server instance specified in the connection string field can be accessed.

The nesting separator property is used to create hierarchical relationships (sub-documents) during import. Consider the following SQL query:

 select CAST(BusinessEntityID AS varchar) as Id, Name, AddressType as [Address.AddressType], AddressLine1 as [Address.AddressLine1], City as [Address.Location.City], StateProvinceName as [Address.Location.StateProvinceName], PostalCode as [Address.PostalCode], CountryRegionName as [Address.CountryRegionName] from Sales.vStoreWithAddresses WHERE AddressType=’Main Office’

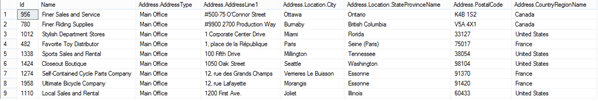

Which returns the following (partial) results:

5

Note the aliases such as Address.AddressType and Address.Location.StateProvinceName.  By specifying a nesting separator of ‘.’, the import tool will create Address and Address.Location subdocuments during the import.  Here is an example of a resulting document in DocumentDB:

{
“id”: “956”,
“Name”: “Finer Sales and Service”,
“Address”: {
“AddressType”: “Main Office”,
“AddressLine1”: “#500-75 O’Connor Street”,
“Location”: {
“City”: “Ottawa”,
“StateProvinceName”: “Ontario”
},
“PostalCode”: “K4B 1S2”,
“CountryRegionName”: “Canada”
}
}

Here are some command line samples for SQL import:

Import records from SQL which match a query

dt.exe /s:SQL /s.ConnectionString:”Data Source=<server>;Initial Catalog=AdventureWorks;User Id=advworks;Password=<password>;” /s.Query:”select CAST(BusinessEntityID AS varchar) as Id, * from Sales.vStoreWithAddresses WHERE AddressType=’Main Office'” /t:DocumentDBBulk /t.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:Stores /t.IdField:Id

Import records from sql which match a query and create hierarchical relationships

dt.exe /s:SQL /s.ConnectionString:”Data Source=<server>;Initial Catalog=AdventureWorks;User Id=advworks;Password=<password>;” /s.Query:”select CAST(BusinessEntityID AS varchar) as Id, Name, AddressType as [Address.AddressType], AddressLine1 as [Address.AddressLine1], City as [Address.Location.City], StateProvinceName as [Address.Location.StateProvinceName], PostalCode as [Address.PostalCode], CountryRegionName as [Address.CountryRegionName] from Sales.vStoreWithAddresses WHERE AddressType=’Main Office'” /s.NestingSeparator:. /t:DocumentDBBulk /t.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:StoresSub /t.IdField:Id



CSV File(s)

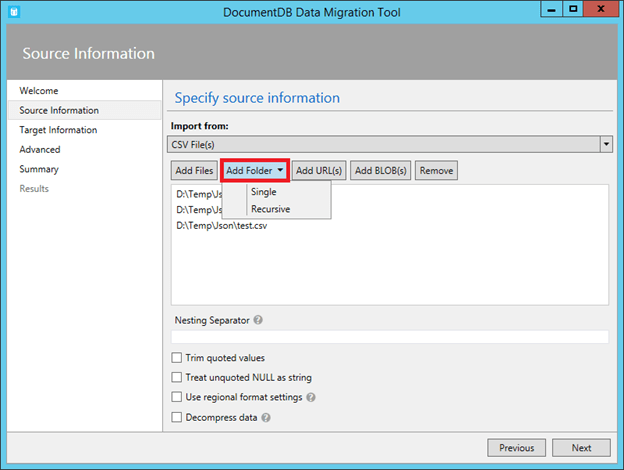

The CSV file source allows you to import one or more CSV files.  When adding folders which contain CSV files for import, you have the option of recursively searching for files in subfolders:


Similar to the SQL source, the nesting separator property may be used to create hierarchical relationships (sub-documents) during import.  Consider the following CSV header row and data rows:


Note the aliases such as DomainInfo.Domain_Name and RedirectInfo.Redirecting.  By specifying a nesting separator of ‘.’, the import tool will create DomainInfo and RedirectInfo subdocuments during the import.  Here is an example of a resulting document in DocumentDB:



{
“DomainInfo”: {
“Domain_Name”: “ACUS.GOV”,
“Domain_Name_Address”: “http://www.ACUS.GOV&#8221;
},
“Federal Agency”: “Administrative Conference of the United States”,
“RedirectInfo”: {
“Redirecting”: “0”,
“Redirect_Destination”: “”
},
“id”: “9cc565c5-ebcd-1c03-ebd3-cc3e2ecd814d”
}

The import tool will attempt to infer type information for unquoted values in CSV files (quoted values are always treated as strings). Types are identified in the following order: number, datetime, boolean.

There are two other things to note with CSV import:

  1. By default, unquoted values are always trimmed for tabs and spaces, while quoted values are preserved as-is. This behavior can be overridden with the Trim quoted values checkbox or the /s.TrimQuoted command line option.
  2. By default, an unquoted null is treated as a null value. This behavior can be overridden (i.e. treat an unquoted null as a “null” string) with the Treat unquoted NULL as string checkbox or the /s.NoUnquotedNulls command line option.

Some tools may use system regional format settings when exporting CSV files. These settings include list and decimal separators, for example. If input files were created with such tool, then you should enable “Use regional format settings” option (or /s.UseRegionalSettings), to make sure that data import will succeed. By default, comma will be used as a list separator and numbers should use “.” (dot) as a decimal separator.

Lastly, Decompress data option allows you to decompress the data from GZip stream while performing an import. This will be applied to all selected files. Equivalent command line option is /s.Decompress.

Here is a command line sample for CSV import:

dt.exe /s:CsvFile /s.Files:.\Employees.csv /t:DocumentDBBulk /t.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:Employees /t.IdField:EntityID



Azure Table Storage

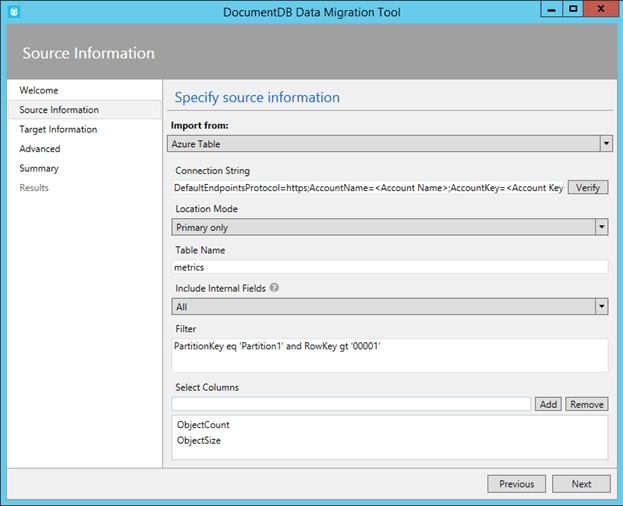

The Azure Table storage source importer option allows you to import from an individual Azure Table storage table and optionally filter the table entities to be imported.


The format of the Azure Table storage connection string is:

DefaultEndpointsProtocol=<protocol>;AccountName=<Account Name>;AccountKey=<Account Key>;

Tip: Use the Verify command to ensure that the Azure Table storage instance specified in the connection string field can be accessed.

Enter the name of the Azure table from which data will be imported. You may optionally specify a filter.

The Azure Table storage source importer has the following additional options:

  1. Location Mode
    • Primary only – connect to the primary replica only
    • Primary, then secondary – try to connect to primary replica and fallback to secondary
    • Secondary only – connect to secondary replica only
    • Secondary, then primary – try to connect to secondary replica and fallback to primary
  2. Include Internal Fields
    • All – Include all internal fields (PartitionKey, RowKey, and Timestamp)
    • None – Exclude all internal fields
    • RowKey – Only include the RowKey field
  3. Select Columns
    • Azure Table storage filters do not support projections. If you want to only import specific Azure Table entity properties, add them to the Select Columns list. All other entity properties will be ignored.

Here is a command line sample to import from Azure Table storage:

dt.exe /s:AzureTable /s.ConnectionString:”DefaultEndpointsProtocol=https;AccountName=<Account Name>;AccountKey=<Account Key>” /s.Table:metrics /s.InternalFields:All /s.Filter:”PartitionKey eq ‘Partition1’ and RowKey gt ‘00001’” /s.Projection:ObjectCount;ObjectSize  /t:DocumentDBBulk /t.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:metrics



Amazon DynamoDB

The Amazon DynamoDB source importer option allows you to import from an individual Amazon DynamoDB table and optionally filter the entities to be imported. Several templates are provided so that setting up an import is as easy as possible.



The format of the Amazon DynamoDB connection string is:

ServiceURL=<Service Address>;AccessKey=<Access Key>;SecretKey=<Secret Key>;

Tip: Use the Verify command to ensure that the Amazon DynamoDB instance specified in the connection string field can be accessed.

Here is a command line sample to import from Amazon DynamoDB:

dt.exe /s:DynamoDB /s.ConnectionString:ServiceURL=https://dynamodb.us-east-1.amazonaws.com;AccessKey=<accessKey>;SecretKey=<secretKey> /s.Request:”{   “””TableName”””: “””ProductCatalog””” }” /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:catalogCollection

Import Files from Azure Blob storage

The JSON file, MongoDB export file, and CSV file source importer options allow you to import one or more files from Azure Blob storage. After specifying a Blob container URL and Account Key, simply provide a regular expression to select the file(s) to import.

Here is a command line sample to import JSON files from Azure Blob storage:

dt.exe /s:JsonFile /s.Files:”blobs://<account key>@account.blob.core.windows.net:443/importcontainer/.*” /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:doctest



DocumentDB

The DocumentDB source importer option allows you to import from one or more DocumentDB collections and optionally filter documents using a query.

12

The format of the DocumentDB connection string is:

AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;

Tip: Use the Verify command to ensure that the DocumentDB instance specified in the connection string field can be accessed.

To import from a single DocumentDB collection, enter the name of the collection from which data will be imported. To import from multiple DocumentDB collections, provide a regular expression to match one or more collection names (e.g. collection01 | collection02 | collection03).  You may optionally specify – or provide a file for – a query to both filter and shape the data to be imported.

Note: Since the collection field accepts regular expressions, if you are importing from a single collection whose name contains regular expression characters, then those characters will need to be escaped accordingly.

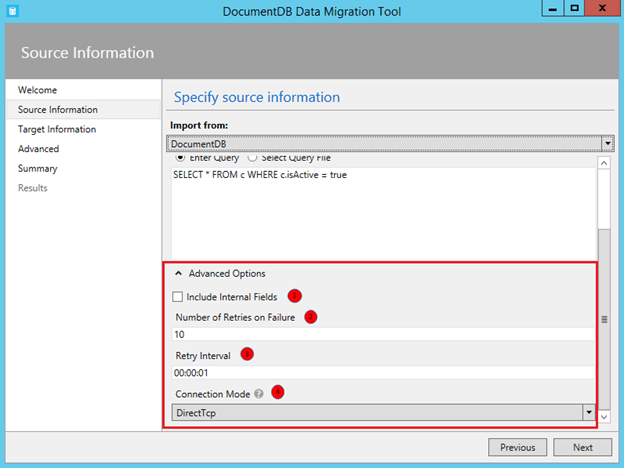

The DocumentDB source importer option has the following advanced options:

  1. Include Internal Fields: Specifies whether or not to include DocumentDB document system properties in the export (e.g. _rid, _ts).
  2. Number of Retries on Failure: Specifies the number of times to retry the connection to DocumentDB in case of transient failures (e.g. network connectivity interruption).
  3. Retry Interval: Specifies how long to wait between retrying the connection to DocumentDB in case of transient failures (e.g. network connectivity interruption).
  4. Connection Mode: Specifies the connection mode to use with DocumentDB. The available choices are DirectTcp, DirectHttps, and Gateway. The direct connection modes are faster, while the gateway mode is more firewall friendly as it only uses port 443.

13

Tip: The import tool defaults to connection mode DirectTcp. If you experience firewall issues, switch to connection mode Gateway, as it only requires port 443.

Here are some command line samples to import from DocumentDB:

Migrate data from one DocumentDB collection to another DocumentDB collectionsdt.exe /s:DocumentDB /s.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /s.Collection:TEColl /t:DocumentDBBulk /t.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:TESessions Migrate data from multiple DocumentDB collections to a single DocumentDB collectiondt.exe /s:DocumentDB /s.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /s.Collection:comp1|comp2|comp3|comp4 /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:singleCollection Export a DocumentDB collection to a JSON filedt.exe /s:DocumentDB /s.ConnectionString:” AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /s.Collection:StoresSub /t:JsonFile /t.File:StoresExport.json /t.Overwrite



HBase

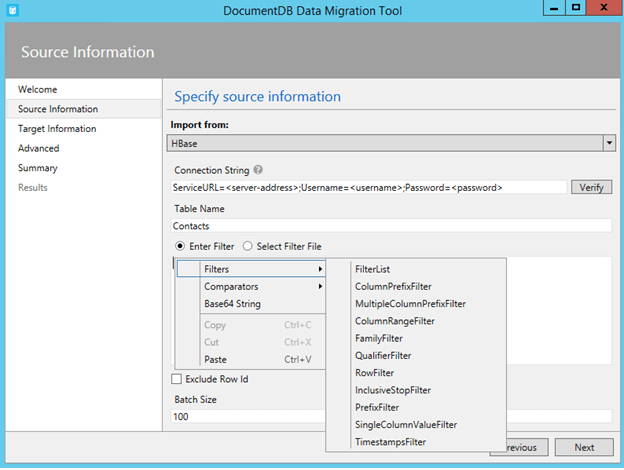

The HBase source importer option allows you to import data from an HBase table and optionally filter the data. Several templates are provided so that setting up an import is as easy as possible.

14

15

The format of the HBase Stargate connection string is:

ServiceURL=<server-address>;Username=<username>;Password=<password>

Tip: Use the Verify command to ensure that the HBase instance specified in the connection string field can be accessed.

Here is a command line sample to import from HBase:

dt.exe /s:HBase /s.ConnectionString:ServiceURL=<server-address>;Username=<username>;Password=<password> /s.Table:Contacts /t:DocumentDBBulk /t.ConnectionString:”AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;” /t.Collection:hbaseimport



Target Options

DocumentDB – Bulk import (single partition collections)

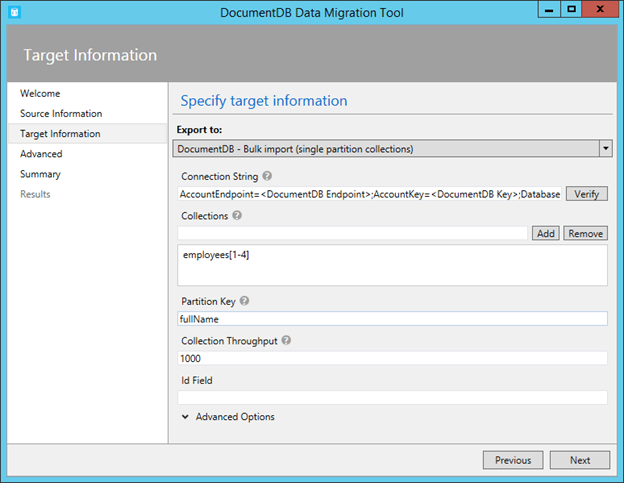

The DocumentDB Bulk importer allows you to import from any of the available source options, using a DocumentDB stored procedure for efficiency. The tool supports import to a single DocumentDB collection, as well as sharded import whereby data is partitioned across multiple DocumentDB collections on the client-side. Read more about partitioning data in DocumentDB here. The tool will create, execute, and then delete the stored procedure from the target collection(s).

16

The format of the DocumentDB connection string is:

AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;

Tip: Use the Verify command to ensure that the DocumentDB instance specified in the connection string field can be accessed.

To import to a single collection, enter the name of the collection to which data will be imported and click the Add button. To import to multiple collections, either enter each collection name individually or use the following syntax to specify multiple collections: collection_prefix[start index – end index]. When specifying multiple collections via the aforementioned syntax, keep the following in mind:

  1. Only integer range name patterns are supported. For example, specifying collection[0-3] will produce the following collections: collection0, collection1, collection2, collection3.
  2. You can use an abbreviated syntax: collection[3] will emit same set of collections mentioned in step 1.
  3. More than one substitution can be provided. For example, collection[0-1][0-9] will generate 20 collection names with leading zeros (collection01, ..02, ..03).

Once the collection name(s) have been specified, choose the desired throughput of the collection(s). For best import performance, choose a higher throughput.

Tip: The performance throughput setting only applies to collection creation. If the specified collection already exists, its throughput will not be modified.

When importing to multiple collections, the import tool supports hash based sharding. In this scenario, specify the document property you wish to use as the Partition Key (if Partition Key is left blank, documents will be sharded randomly across the target collections).

You may optionally specify which field in the import source should be used as the DocumentDB document id property during the import (note that if documents do not contain this property, then the import tool will generate a GUID as the id property value).

There are a number of advanced options available during import. First, while the tool includes a default bulk import stored procedure (BulkInsert.js), you may choose to specify your own import stored procedure:

17

Additionally, when importing date types (e.g. from SQL Server or MongoDB), you can choose between three import options:

18

  • String: persist as a string value
  • Epoch: persist as an Epoch number value
  • Both: Persist both string and Epoch number values. This option will create a subdocument,

for example:
“date_joined”: {
“Value”: “2013-10-21T21:17:25.2410000Z”,
“Epoch”: 1382390245
}

The DocumentDB Bulk importer has the following additional advanced options:

  1. Batch Size: The tool defaults to a batch size of 50. If the documents to be imported are large, consider lowering the batch size. Conversely, if the documents to be imported are small, consider raising the batch size.
  2. Max Script Size (bytes): The tool defaults to a max script size of 512KB
  3. Disable Automatic Id Generation: If every document to be imported contains an id field, then selecting this option can increase performance. Documents missing a unique id field will not be imported.
  4. Update Existing Documents: If existing documents with the same Id should be updated.
  5. Persist Date and Time as
    • String – date and time values should be persisted as string
    • Epoch – date and time values should be stored as a number of seconds that have elapsed since 1/1/1970
    • Both – store date and time values as both string and epoch representation; see example in Sequential record import section

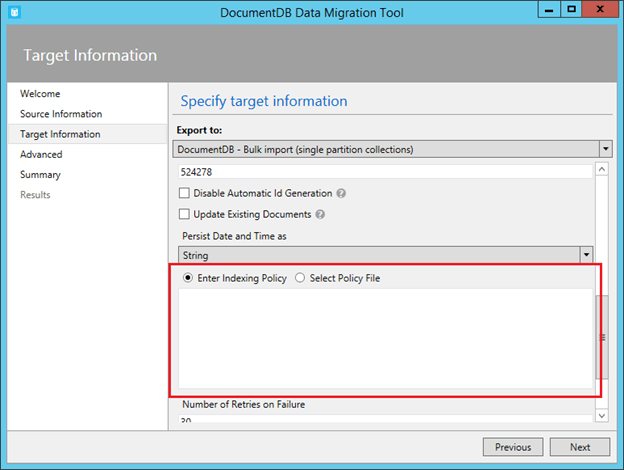

  6. Indexing Policy: Defines custom indexes for the collection
  7. Number of Retries on Failure: Specifies the number of times to retry the connection to DocumentDB in case of transient failures (e.g. network connectivity interruption).
  8. Retry Interval: Specifies how long to wait between retrying the connection to DocumentDB in case of transient failures (e.g. network connectivity interruption).
  9. Connection Mode: Specifies the connection mode to use with DocumentDB. The available choices are DirectTcp, DirectHttps, and Gateway. The direct connection modes are faster, while the gateway mode is more firewall friendly as it only uses port 443.

19

Tip: The import tool defaults to connection mode DirectTcp. If you experience firewall issues, switch to connection mode Gateway, as it only requires port 443.



DocumentDB – Sequential record import (partitioned collection)

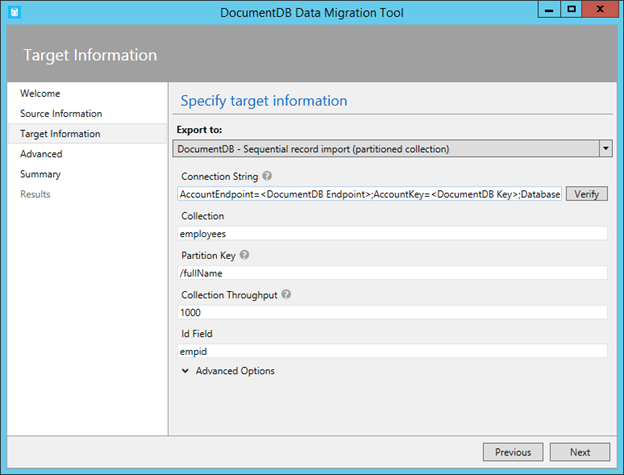

The DocumentDB sequential record importer allows you to import from any of the available source options on a record by record basis. You might choose this option if you’re importing to an existing collection that has reached its quota of stored procedures. This importer always uses server‑side partitioning. Read more about partitioning data in DocumentDB here.

20

The format of the DocumentDB connection string is:

AccountEndpoint=<DocumentDB Endpoint>;AccountKey=<DocumentDB Key>;Database=<DocumentDB Database>;

Tip: Use the Verify command to ensure that the DocumentDB instance specified in the connection string field can be accessed.

To import to a collection, enter the name of the collection to which data will be imported.

When importing to a collection, DocumentDB supports server-side hash based sharding. In this scenario, specify the document property you wish to use as the Partition Key.

The collection throughput allows you to specify desired throughput of the collection in Request Units (RUs).

Tip: The collection throughput setting only applies to collection creation. If the specified collection already exists, its throughput will not be modified.

You may optionally specify which field in the import source should be used as the DocumentDB document id property during the import (note that if documents do not contain this property, then the import tool will generate a GUID as the id property value).

You may optionally specify which field in the import source should be used as the DocumentDB document id property during the import (note that if documents do not contain this property, then the import tool will generate a GUID as the id property value):

There are number of advanced options available during import. First, when importing date types (e.g. from SQL Server or MongoDB), you can choose between three import options:

21

  • String: persist as a string value
  • Epoch: persist as an Epoch number value
  • Both: Persist both string and Epoch number values. This option will create a subdocument,

for example:
“date_joined”: {
“Value”: “2013-10-21T21:17:25.2410000Z”,
“Epoch”: 1382390245
}

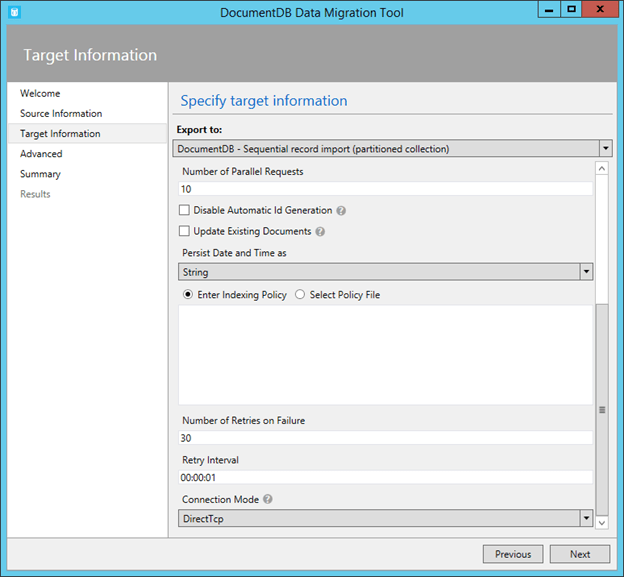

The DocumentDB – Sequential record importer has the following additional advanced options:

  1. Number of Parallel Requests: The tool defaults to 2 parallel requests. If the documents to be imported are small, consider raising the number of parallel requests. Note that if this number is raised too much, the import may experience throttling.
  2. Disable Automatic Id Generation: If every document to be imported contains an id field, then selecting this option can increase performance. Documents missing a unique id field will not be imported.
  3. Update Existing Documents: If existing documents with the same Id should be updated.
  4. Indexing Policy: Defines custom indexes for the collection
  5. Number of Retries on Failure: Specifies the number of times to retry the connection to DocumentDB in case of transient failures (e.g. network connectivity interruption).
  6. Retry Interval: Specifies how long to wait between retrying the connection to DocumentDB in case of transient failures (e.g. network connectivity interruption).
  7. Connection Mode: Specifies the connection mode to use with DocumentDB. The available choices are DirectTcp, DirectHttps, and Gateway. The direct connection modes are faster, while the gateway mode is more firewall friendly as it only uses port 443.

22

Tip: The import tool defaults to connection mode DirectTcp. If you experience firewall issues, switch to connection mode Gateway, as it only requires port 443.



Specify Indexing Policy when Creating DocumentDB Collections

When you allow the migration tool to create collections during import, you can specify the indexing policy of the collections. In the advanced options section of the DocumentDB Bulk import and DocumentDB Sequential record import, navigate to the Indexing Policy section.

23

Using the Indexing Policy advanced option, you can select an indexing policy file, manually enter an indexing policy, or select from a set of default templates (by right clicking in the indexing policy textbox).

The policy templates the tool provides are:

  • This policy is best when you’re performing equality queries against strings and using ORDER BY, range, and equality queries for numbers. This policy has a lower index storage overhead than Range.
  • This policy is best when you’re performing equality queries for both numbers and strings. This policy has the lowest index storage overhead.
  • This policy is best you’re using ORDER BY, range and equality queries on both numbers and strings. This policy has a higher index storage overhead than Default or Hash.

24

If you do not specify an indexing policy, then the default policy will be applied. Read more about DocumentDB indexing policies here.



JSON file

The DocumentDB JSON exporter allows you to export any of the available source options to a JSON file that contains an array of JSON documents. The tool will handle the export for you, or you can choose to view the resulting migration command and run the command yourself. The resulting JSON file may be stored locally or in Azure Blob storage.

25

26

You may optionally choose to prettify the resulting JSON, which will increase the size of the resulting document while making the contents more human readable.

Standard JSONStandard JSONexport [{ “id”: “Sample”, “Title”: “About Paris”, “Language”: { “Name”: “English” }, “Author”: { “Name”: “Don”, “Location”: { “City”: “Paris”, “Country”: “France” } }, “Content”: “Don’s document in DocumentDB is a valid JSON document as defined by the JSON spec.”, “PageViews”: 10000, “Topics”: [{ “Title”: “History of Paris” }, { “Title”: “Places to see in Paris” }]}]  Prettified JSONexport [{ “id”: “Sample”, “Title”: “About Paris”, “Language”: {  “Name”: “English” }, “Author”: {  “Name”: “Don”, “Location”: {    “City”: “Paris”,   “Country”: “France”  } }, “Content”: “Don’s document in DocumentDB is a valid JSON document as defined by the JSON spec.”, “PageViews”: 10000, “Topics”: [ {    “Title”: “History of Paris”  },   {    “Title”: “Places to see in Paris”  }]}]

Use Compress data option, if you want to compress the exported data with GZip. Equivalent command line option is /t.Compress.

Advanced Configuration

In the Advanced configuration screen, specify the location of the log file to which you would like any errors written. The following rules apply to this page:

  1. If a file name is not provided, then all errors will be returned on the Results page.
  2. If a file name is provided without a directory, then the file will be created (or overwritten) in the current environment directory.
  3. If you select an existing file, then the file will be overwritten, there is no append option.

27

You can also select whether detailed error information (exception stack trace) should be shown for all errors, critical errors only or neither of those.

Progress Update Interval option allows you to define how often on-screen data transfer progress should be updated.

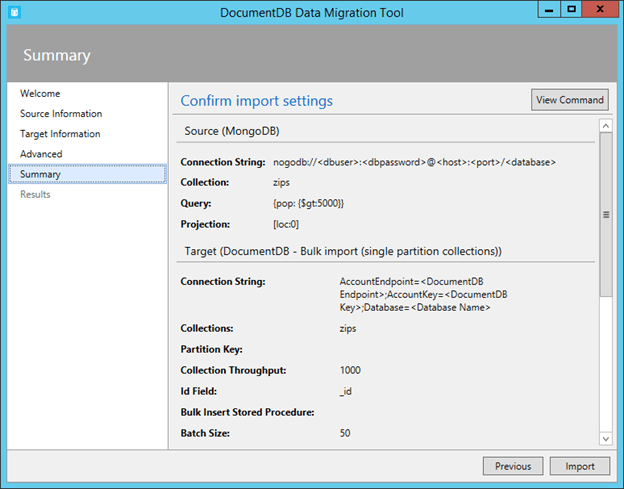

Confirm Import Settings and View Command

After specifying source and target information, review the migration information and, optionally, view/copy the resulting migration command (copying the command is useful to automate import operations):
28

29

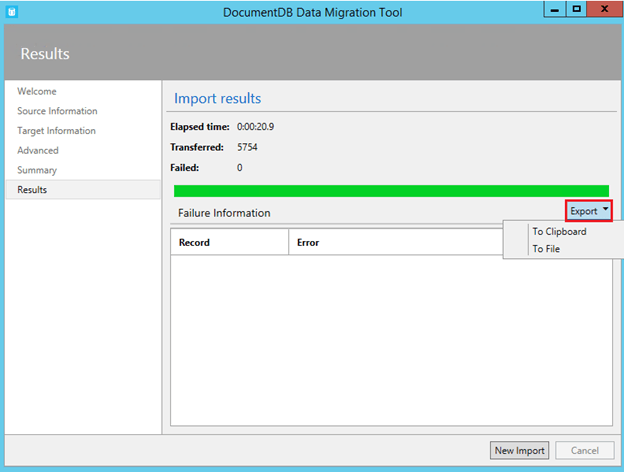

Once you’re satisfied with your source and target options, click Import. The elapsed time, transferred count, and failure information (if you didn’t provide a file name in the Advanced configuration) will update as the import is in process. Once complete, you can export the results (e.g. to deal with any import failures).

30
You may also start a new import, either keeping the existing settings (e.g. connection string information, source and target choice, etc.) or resetting all values.
31

Advertisements

Written by Varun Kumar

Varun works with Microsoft as a Cloud Consultant. He comes with 10+ years of experience into Consultant, Solution Architect, and Delivery Management roles. As a Consultant in Microsoft, his job is to design, develop and deploy enterprise level solutions using Azure, to help organizations to achieve more.

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out /  Change )

Google photo

You are commenting using your Google account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

Connecting to %s
